• Paste printing

  • unleaded (RoHS) alloy (SAC305, SN100C)
  • Soluble or no clean flux
  • solder balls from 30µm to 60 µm

• Adhesive printing

  • For parts larger or equivalent to 0603, SOT-23
  • which will be wave soldered together with inserted components

• Maximum printed image size of 11" x 16" (30cm x 40cm)

• Possibility of sharing top and bottom images on the same stencil if each image is smaller than 11" x 5"

• Systematic visual inspection of patterns covered by the component (eg. BGA, LGA, QFN, etc)

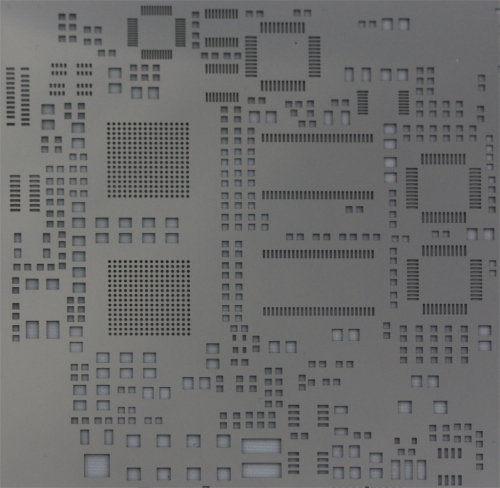

• Standard laser cut, electropolished, stainless steel stencil.  Electroformed or nickel plated stencil as required.  Typical thicknesses of 0.004" to 0.012" (100um à 300um).

• Pad openings as small as 0.006" (150um)

• Pads spacing as small as 0.006" (150um)

Are required from the customer

• Paste mask Gerber file for each of assembled surface
